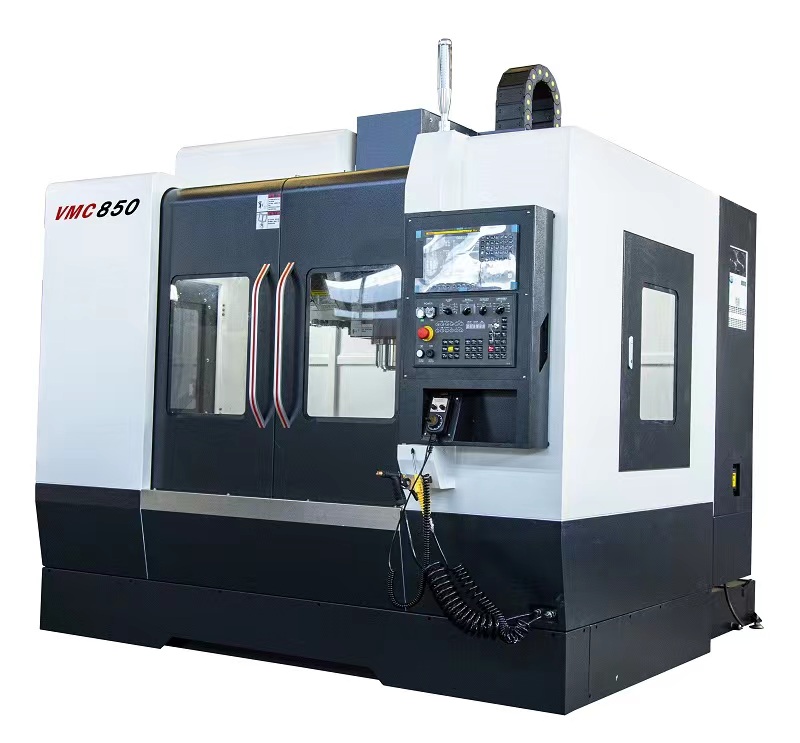

CNC Machining Center
High precision and versatile CNC machine
Table dimensions | 700×400mm |
Spindle taper | BT40 |
X-axis travel | 590/400/400 |
Y-axis travel | 320 mm |
Z-axis travel | 420 mm |
Spindle taper from table surface distance | 90–470 mm |
Quick travels | 10/10/8 m/min |
X/Y/Z axes servomotor torque | 1.5/1.5/2.0 |
Positioning accuracy | ±0.02 mm |
Positioning repeatability accuracy | ±0.01 mm |
Spindle speed | 8000 rpm |
Motor power | 3.7 kW |
Control system | SINUMERIK 808D |
Loading Weight | 350 kg |
Dimensions | 2100×1800×2200 mm |
